Technical Specifications

Machine Cut off (mm) 508 533 546 560 578 610 630
Paper width full reel (mm) 660-889 660-889 660-889 660-889 660-889 660-889 660-889
Max. reel dia (mm) 1300 1300 1300 1300 1300 1300 1300
Plate width (mm) 889 889 889 889 889 889 889
Plate length (unbent) Slit (mm)
(unbent) Slit
538 563 576 590 608 640 660
Plate thickness (mm) 0.28 0.28 0.28 0.28 0.28 0.28 0.28
Plate & Blanket width (mm) 889 889 889 889 889 889 889
Blanket Length (T-BAR) (mm)
(T-BAR)
556 581 594 608 626 658 678
Blanket Length (Narrow gap) (mm) 576 601 614 628 646 678 698
Blanket thickness (mm) 1.7 1.7 1.7 1.7 1.7 1.7 1.7

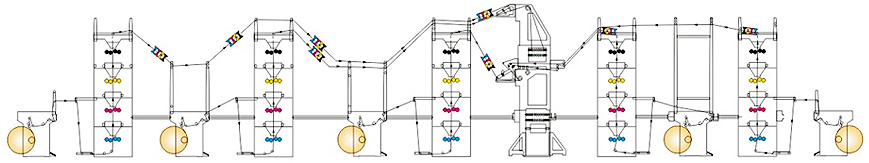

configuration


products



20 pages of broadsheet size of newspaper in which all pages in four colors
Rs1 + 4Hi1 + URS1 + 4Hi2 + URS2 + 4Hi3 + Super Folder with Upper Former + 4Hi4 + URS3 + 4Hi5 + RS2
