Jaw Type 1: 2 Folder – Standard 16,000 cph
1:2 Jaw folder capable of folding broadsheet upto 4 webs, and upto 16000 cph
• An economical, rugged 1:2 Folder, capable of folding 4 webs in broadsheet /tabloid at speed upto 16000 cph
• Mechanical copy counter
• Kicker for 25 copies
• Oil bath lubrication for drive side gears
• Main drive shaft coupled with splined hub at cylinder height for minimum backlash and smooth power transmission
• Slitter or perforator on rtf roller as standard accessory
• Forward and reverse lap
• Single nipping
• Single RTF roller
• Perforator or slitter on nipping roller
• 1/4 Page Folder
Jaw Type 1: 2 Folder – Super 30,000 cph, 36,000 cph
1:2 Jaw folder capable of folding broadsheet upto 6 webs ,and upto 30000 cph
• 1:2 Folder, capable of folding 8 webs(with double RTF roller) in broadsheet /tabloid at speed upto 30000 cph
• RTF roller, cutting cylinder and jaw cylinder dynamically balanced
• Air former
• Double nipping roller
• Folder jam switch
• Signal lights on the folder
• Main drive shafts with Thomas coupling at cylinder height for minimum backlash and smooth power transmission
• Electronic copy counter
• Kicker for 0-99 copies adjustable
• Centralised oil pressure lubrication for drive gears
• Slitter or perforator on RTF
• Grease Lubrication for Operating side bearings and cams
• Hardened and ground gears for folders drive and cylinder
• Lap adjustment+10 mm
Options:
• Double RTF rollers for running 8 web
• 1/4 Page Folder
• Double parallel folder
• Cross perforator
• Web under lead system
• Clutch on operating side of folder
• Cut-off control on folder for maximum four webs both sides
• Single-shot grease lubrication for operating side bearings and cams
• Slitter or perforator on nipping rollers
• Upper former
• Fly wheel delivery for folded edge leading
• Motorized cut off controls
Technical Specifications

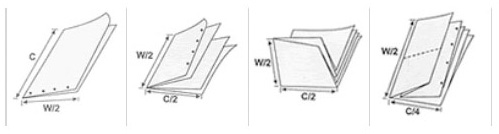

| Broadsheet | Tabloid | Quarterfold (Magazine) | Double Parallel or Digest (2-on) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Folder | Type | Max.Speed cph | Max.No. of webs | Max.Speed cph | Max.No. of webs | Max.Speed cph | Max.No. of webs | Max.Speed cph | Max.No. of webs |
| Standard | JAW (1:2) | 16,000 | 4 | 16,000 | 4 | 12,000 | 2 | N . A. | N . A. |
| Super | JAW (1:2) | 30,000 | 6 8* |
30,000 | 6 | 24,000 | 4 | 22,000 | 2 |
| JAW (2:2) | 36,000 | 8* | 36,000 | 8 | 30,000 | 4 | 22.000 | 2 | |
Technical Specifications
| Machine Cut off (mm) | 508 | 533 | 546 | 560 | 578 | 610 | 630 |
|---|---|---|---|---|---|---|---|
| Paper width full reel (mm) | 660-889 | 660-889 | 660-889 | 660-889 | 660-889 | 660-889 | 660-889 |
| Max. reel dia (mm) | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 |
| Plate width (mm) | 889 | 889 | 889 | 889 | 889 | 889 | 889 |
| Plate length (unbent) Slit (mm)(unbent) Slit | 538 | 563 | 576 | 590 | 608 | 640 | 660 |
| Plate thickness (mm) | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 |
| Plate & Blanket width (mm) | 889 | 889 | 889 | 889 | 889 | 889 | 889 |
| Blanket Length (T-BAR) (mm)(T-BAR) | 556 | 581 | 594 | 608 | 626 | 658 | 678 |
| Blanket Length (Narrow gap) (mm) | 576 | 601 | 614 | 628 | 646 | 678 | 698 |
| Blanket thickness (mm) | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
