NEWSPAPER PRINTING MACHINE is a flagship machine of Rotta Print India Pvt Ltd. This machine has got full flexibility and high production and quality features. With 2 nos. reel stands, 2 nos. 4 high towers and one folder of 30,000 speed, gives 8pages folded and cut as per newspaper size. We have capability of printing machines either 16 pages, 4 colour or 20 pages 4 colours or 24 pages 4 colours. There is a clutch/declutch system to connect and disconnect one printing tower. Its 100% uptime performance gives the printer a competitive edge over its competition. Printer can plan more jobs and high-volume production easily on this machine. Its various top-notch features and control system enables it run day in and day out. It's a operator friendly machine with remote connectivity feature.
Cut-off sizes: 508mm, 533mm, 546mm, 560mm, 578mm, 610mm and 630mm.
• 24 Page Newspaper Printing Machine
• 20 Page Newspaper Printing Machine
• 16 Page Newspaper Printing Machine
• 12 Page Newspaper Printing Machine
• 8 Page Newspaper Printing Machine
• 4 Page Newspaper Printing Machine
| STANDARD FEATURES | 4HI | 3C/S | Mono |
|---|---|---|---|
| High Grade, Stress-relieved Cast Iron (Seasoned Casting) which is machined on CNC Machines-VMC/HMC | ✔ | ✔ | ✔ |
| Lever Type swing down-down ink fountain with overrides for ink fountain roller | ✔ | ✔ | ✔ |
| Cloth dampening system | ✔ | ✔ | ✔ |
| Stainless Steel dampening rollers(unbent) Slit | ✔ | ✔ | ✔ |
| Dynamically-balanced hard chromium plated Plate & Blanket cylinders | ✔ | ✔ | ✔ |
| On the nose, slit type plate lock up system | ✔ | ✔ | ✔ |
| SG Iron Sleeves, grade 600/3 for Plate & Blanket cylinders(T-BAR) | ✔ | ✔ | ✔ |
| Steel Bearing grade Bushes SAE 52100 in main frame for Plate & Blanket cylinders Sleeves | ✔ | ✔ | ✔ |
| Manual running Circumferential register (RCR) | ✔ | ✔ | ✔ |
| Manual side register system for both Plate cylinders, on the run | ✔ | ✔ | ✔ |
| Bustle Wheel assembly for fan out correction | ✔ | ✖ | ✖ |
| High quality powder coated safety guards | ✔ | ✔ | ✔ |
| Centralized oil pressure lubrication for drive gears | ✔ | ✔ | ✔ |
| Heavy-duty timer belt drive for Stack unit | ✔ | ✔ | ✖ |
| Variable-speed motorized dampening | ✔ | ✔ | ✔ |
| Centralized water circulation system | ✔ | ✔ | ✔ |
| PU covered ink vibrator roller | ✔ | ✔ | ✔ |
| T-Bar blanket lock up system | ✔ | ✔ | ✔ |
| Anti-set web transfer grater roller | ✔ | ✖ | ✖ |
| Heavy-duty compensator | ✖ | ✔ | ✔ |
| Optional Features | |||
| Pneumatic on/Off for ink Roller, Damping Roller, Plate & Imp cylinders | ✔ | ✔ | ✔ |
| Motorization of running circumference register (RCR) & side lay registers along with motorized compensator on folder for each web | ✔ | ✔ | ✔ |
| Brush mist dampening system | ✔ | ✔ | ✔ |
| Spray Dampening system | ✔ | ✔ | ✔ |
| Narrow Gap Blanket cylinders | ✔ | ✔ | ✔ |
| Solid Stainless-Steel Plate & Blanket cylinders | ✔ | ✔ | ✔ |
| Auto registration & auto cut off system | ✔ | ✔ | ✖ |
| Auto Reel Splicer | ✔ | ✔ | ✔ |

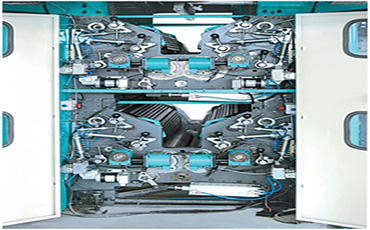

Motorization
The Motorization is provided for running circumference register and side lay register for the whole machine along with Motorized compensator on folder for each printing machine.
Independent control of each motor is provided on the central control desk for remote operation. Also, it becomes an integral part of the system in case an auto registration control device is provided with the printing unit.
Pneumatic
The pneumatic on-off control is provided for Ink rollers & dampening rollers and impression cylinders with the help of pneumatic cylinders and a gang of solenoid valves. It isolates the rubber parts/rollers from other contact parts when the machine is idle. It saves operational time & makes the printing unit user friendly and easy to control even from the control desk.
Technical Specifications
| Machine Cut off (mm) | 508 | 533 | 546 | 560 | 578 | 610 | 630 |
|---|---|---|---|---|---|---|---|
| Paper width full reel (mm) | 660-889 | 660-889 | 660-889 | 660-889 | 660-889 | 660-889 | 660-889 |
| Max. reel dia (mm) | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 |
| Plate width (mm) | 889 | 889 | 889 | 889 | 889 | 889 | 889 |
| Plate length (unbent) Slit (mm)(unbent) Slit | 538 | 563 | 576 | 590 | 608 | 640 | 660 |
| Plate thickness (mm) | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 |
| Plate & Blanket width (mm) | 889 | 889 | 889 | 889 | 889 | 889 | 889 |
| Blanket Length (T-BAR) (mm)(T-BAR) | 556 | 581 | 594 | 608 | 626 | 658 | 678 |
| Blanket Length (Narrow gap) (mm) | 576 | 601 | 614 | 628 | 646 | 678 | 698 |
| Blanket thickness (mm) | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |

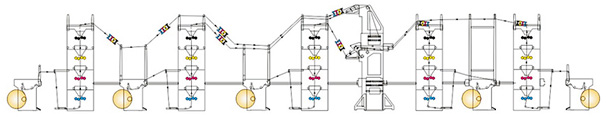

20 PAGES OF BROADSHEET SIZE OF NEWSPAPER IN WHICH ALL PAGES IN FOUR COLORS
