Single Color Machine

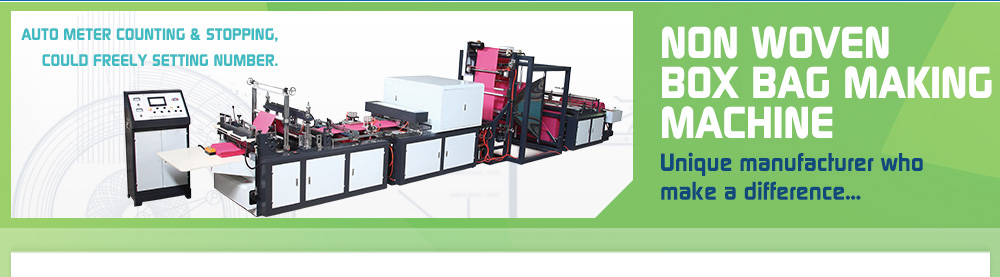

Non Woven Box Bag Making Machine

Standard Features of Non woven box bag making machine

  • Computer fixed-length, printing color mark track orientation, Auto-stop when complete.
  • Unwinding magnetic powder tension control with manual, Auto side-correction control.
  • Auto meter counting & stopping, could freely setting number.
  • High voltage static processor, Auto constant temperature heating controller.
  • This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
  • This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.
  • his machine has the function of automatic punching.
Non Woven Box Bag Making Machine


Type R - 600 R - 700 R - 800
Production Speed 20-120 pcs/min 20-120 pcs/min 20-120 pcs/min
Bag Width 100-800 mm 100-800 mm 100-800 mm
Bag Length 200-480 mm 200-580 mm 200-680 mm
Bag Thickness 30-120 gsm 30-120 gsm 30-120 gsm
Power Supply 380 V/220V 380 V/220V 380 V/220V
Total Power 6 KW 6 KW 6 KW
Owerall Dimension (L*W*H) 7600x1650x1800 mm 8000x1800x2000 mm 8500x1850x2000 mm
Weight 1800 KG 1800 KG 2100 KG
